Rached Flanges is a reputable manufacturer and supplier of Nickel Alloy Lap Joint Flanges based in Tunis, Tunisia. They specialize in providing top-notch flange solutions for piping systems that need to resist corrosion and allow for easy alignment. With state-of-the-art manufacturing facilities and strict quality control processes, Rached Flanges produces lap joint flanges that boast precise dimensions, impressive mechanical strength, and dependable performance. They offer these flanges in a variety of nickel alloy grades to comply with international standards and cater to specific project needs. The company serves a range of industries, including oil and gas, chemical processing, petrochemical, power generation, and marine, and is committed to delivering durable, cost-effective, and precision-engineered flange solutions with timely delivery and consistent quality.

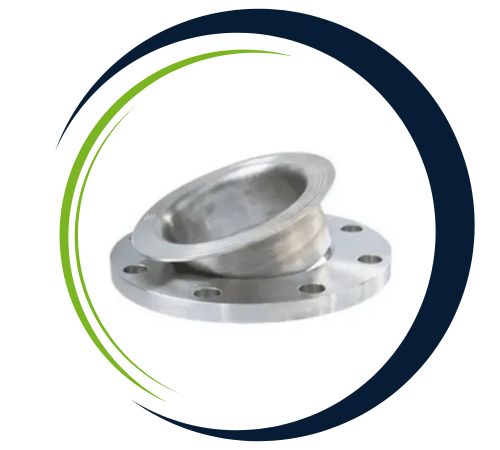

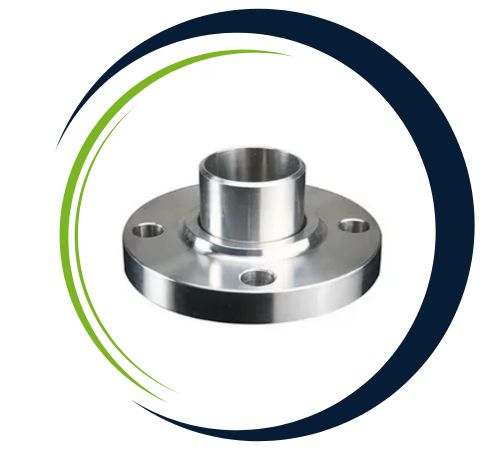

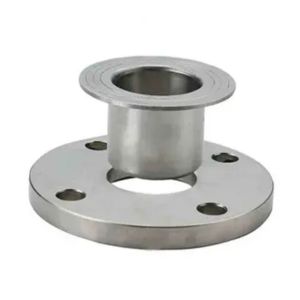

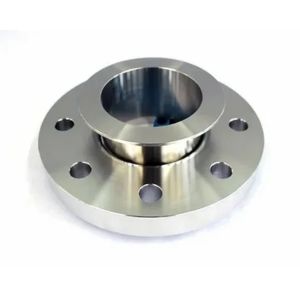

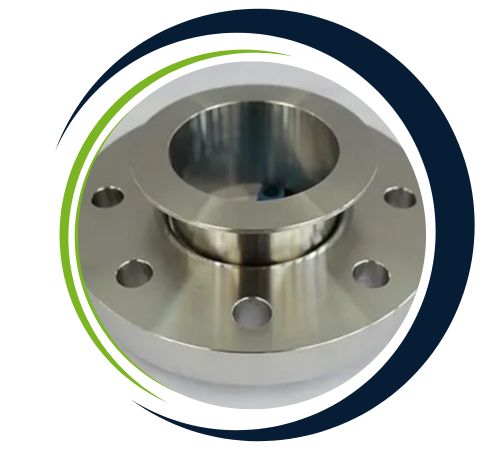

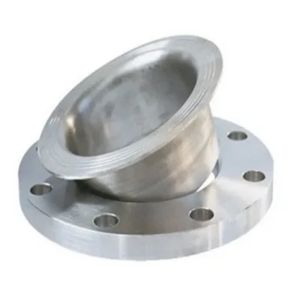

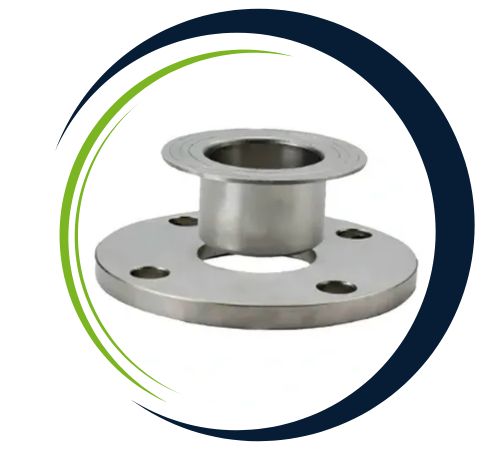

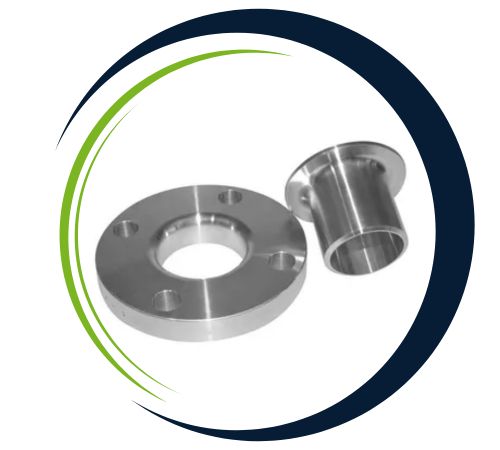

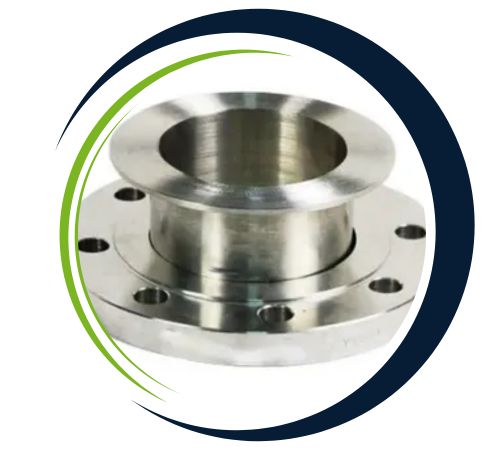

Nickel Alloy Lap Joint Flanges are crafted from high-performance nickel-based alloys like Inconel, Monel, and Hastelloy. These materials provide outstanding resistance to corrosion and oxidation, even in harsh environments. The mechanical properties of these flanges include high tensile and yield strength, along with good ductility and toughness, even under elevated pressure and temperature conditions. Designed to work with stub ends, these flanges allow for rotation and easy alignment while maintaining their structural integrity, ensuring reliable sealing and long-lasting durability in demanding industrial applications.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B564 F201 Nickel Alloy Flanges |
| Grades | Nickel Alloy 200, 201 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Rached Flanges, a leading supplier in Tunis, Tunisia, offers an extensive selection of Nickel Alloy Lap Joint Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Nickel alloy lap joint flanges are extensively applied across industries that need high corrosion, oxidation, and harsh-temperature resistances. Typical uses are in chemical processing, petrochemical, oil and gas, and marine environments. The lap joint design makes them simple to disassemble, such that they are best suited for equipment needing constant inspection or upkeep. Flanges are especially useful in aggressive chemicals, seawater, or high-pressure environments. Their higher strength, toughness, and resistance to severe operating conditions make them a safe option for mission-critical piping systems.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
| Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | – | LC-Ni 99 |
| ASME/ANSI B 16.5 | Lap Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Lap Joint Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Lap Joint Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Nickel Alloy Lap Joint Flanges to meet specific project needs. Our team at Rached Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rachedflanges.com.
These Nickel Alloy Lap Joint Flanges are commonly used in situations where corrosion resistance, high-temperature performance, and ease of installation are essential. Typical applications include oil and gas pipelines, chemical and petrochemical plants, offshore platforms, power generation facilities, and marine installations. They are also utilized with heat exchangers, pressure vessels, and process piping systems that require frequent disassembly. Their ability to endure aggressive chemicals, high pressures, and extreme temperatures makes nickel alloy lap joint flanges perfect for critical industrial systems that demand safety, longevity, and reliability.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
