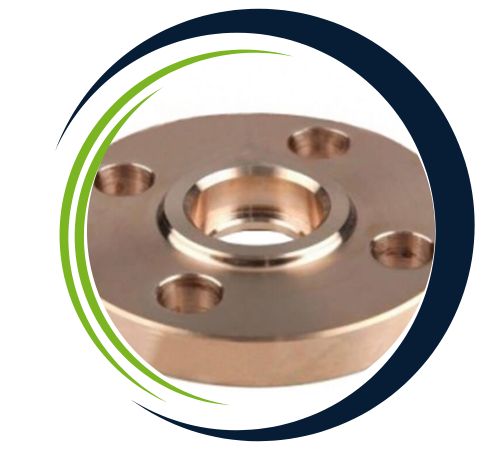

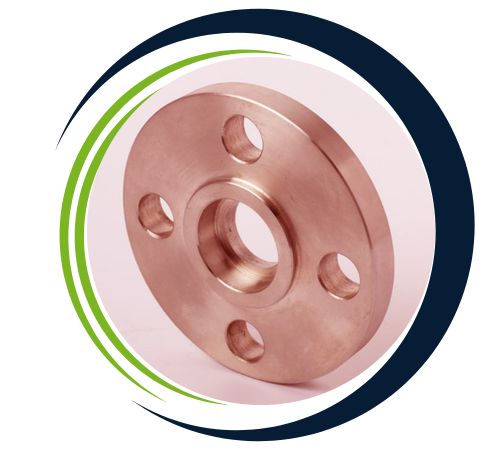

Rached Flanges, located in Tunis, Tunisia, has earned a solid reputation as a reliable manufacturer and supplier of top-notch industrial flanges. They specialize in Copper Nickel Flat Flanges, which are celebrated for their durability, resistance to corrosion, and precision engineering. These flanges are crafted to ensure dependable, leak-proof connections in piping systems, especially in marine, chemical, and industrial settings where saltwater or harsh fluids can cause corrosion. Catering to sectors like shipbuilding, desalination, chemical processing, and power generation, Rached Flanges employs cutting-edge manufacturing techniques alongside rigorous quality control to guarantee long-lasting performance, operational efficiency, and safety in challenging industrial applications.
Copper Nickel Flat Flanges are mainly made from copper-nickel alloys, typically featuring a 70/30 or 90/10 copper-to-nickel ratio, which gives them remarkable resistance to corrosion, erosion, and biofouling. These flanges boast high mechanical strength, impressive tensile and yield strength, and good ductility, ensuring they can withstand operational pressures. Their flat-faced design makes alignment and secure bolting in piping systems a breeze. Manufactured to comply with strict international standards, Copper Nickel Flat Flanges maintain their structural integrity and reliable performance even in harsh environments, such as seawater, chemical fluids, and industrial piping systems, making them ideal for long-term, maintenance-free use.

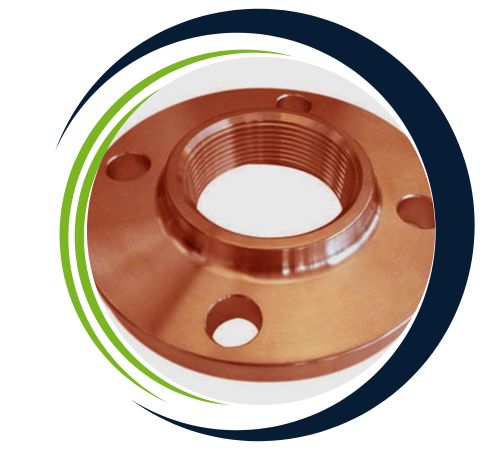

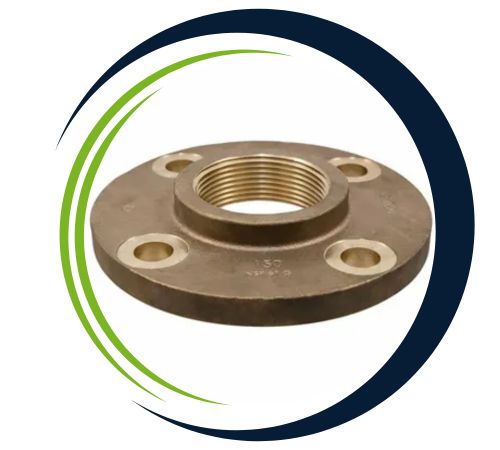

| Specification | ASTM B151 / ASME SB151 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JIS B2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, 90/10-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B151 70/30 Copper Nickel Flanges |
| Grades | Copper Nickel 70/30, 90/10 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

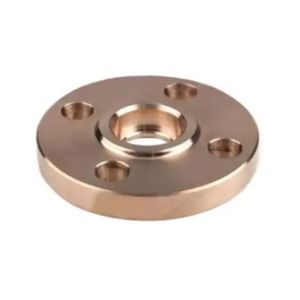

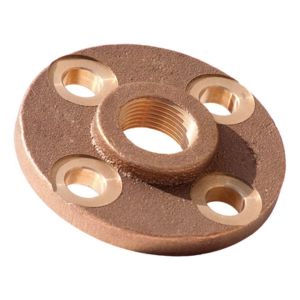

Rached Flanges, a leading supplier in Tunis, Tunisia, offers an extensive selection of Copper Nickel Flat Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Copper Nickel Flat flanges are primarily utilized in marine and offshore environments due to their excellent corrosion, appropriate biofouling and seawater erosion resistance Such spectacle flanges allow individuals to effortlessly switch in between open and close conditions, effortlessly clean and inspect pipe work without shutdown of the system And prominent and copper nickel glass flanges are suitable for marine water systems, a heat such as exchangers, condensers and fire systems strength and durability supply reliability in harsh marine environments.
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Cupro Nickel 90/10 | 2.0872 | C70600 |
| Cupro Nickel 70/30 | 2.0882 | C71500 |

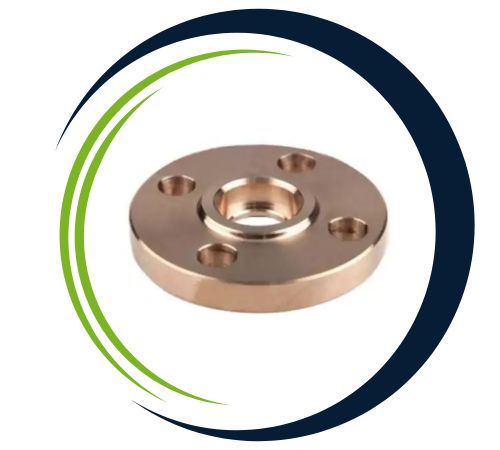

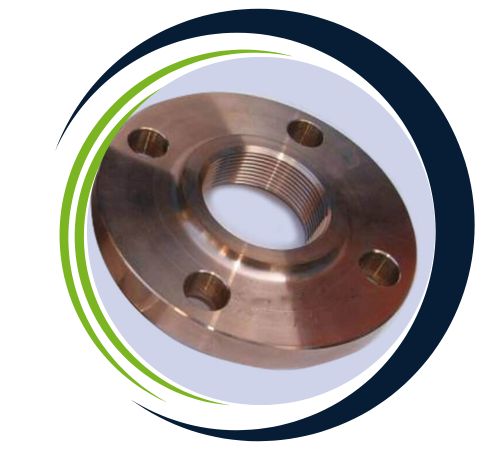

| ASME/ANSI B 16.5 | Flat Face Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Flat Face Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Flat Face Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Flat Face |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Copper Nickel Flat Flanges to meet specific project needs. Our team at Rached Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rachedflanges.com.
Copper Nickel Flat Flanges find extensive use in industries that demand corrosion-resistant and durable connections. They are commonly applied in marine and offshore pipelines, shipbuilding, desalination plants, chemical processing units, and power generation facilities. These flanges create leak-proof joints for pipes, valves, pumps, and other equipment, ensuring safety and operational efficiency. Their flat-faced design facilitates easy installation, alignment, and maintenance, even in tough environmental conditions. Rached Flanges’ Copper Nickel Flat Flanges are truly a reliable choice for demanding applications.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
