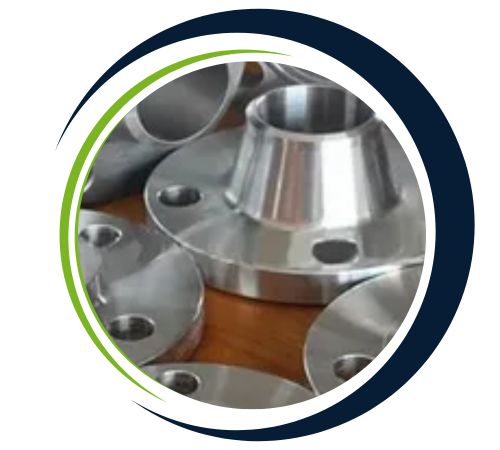

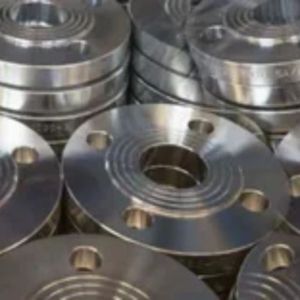

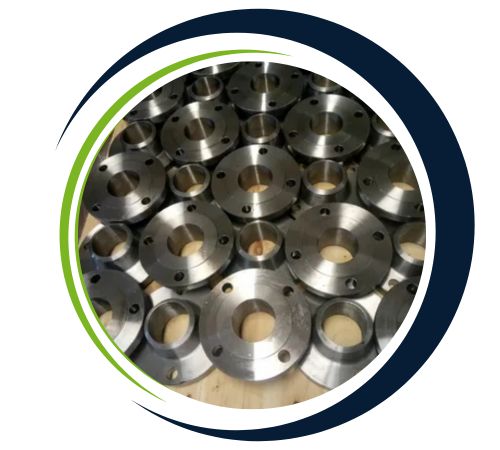

Rached Flanges, based in Tunis, Tunisia, stands out as a top manufacturer and supplier of high-quality Inconel threaded flanges. Known for their precision engineering and commitment to international standards, Rached Flanges crafts flanges that excel in high-performance and corrosive settings. These Inconel threaded flanges offer remarkable corrosion resistance paired with impressive mechanical strength, allowing for easy installation without welding thanks to their secure threaded connections. Catering to sectors like chemical processing, oil and gas, petrochemical, power generation, and marine applications, Rached Flanges employs cutting-edge manufacturing techniques and rigorous quality control to produce durable, reliable, and high-performance flanges that ensure safety and longevity in challenging industrial systems.

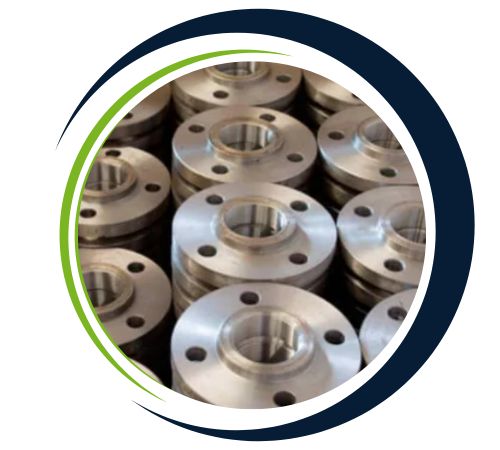

Inconel threaded flanges are primarily crafted from nickel-chromium-based Inconel alloys, such as Inconel 600 or 625, which contain high levels of nickel, chromium, and iron, along with trace amounts of molybdenum and cobalt. This unique composition grants them outstanding resistance to oxidation, corrosion, and high-temperature degradation. On the mechanical side, these flanges boast a tensile strength ranging from 550 to 900 MPa, yield strength between 240 and 450 MPa, and an elongation of 20 to 40%. Their threaded design ensures secure installation without welding while maintaining dimensional stability and high mechanical integrity, even under extreme temperatures, pressures, and corrosive conditions in demanding industrial environments.
Rached Flanges, a leading supplier in Tunis, Tunisia, offers an extensive selection of Inconel Threaded Flangess, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|

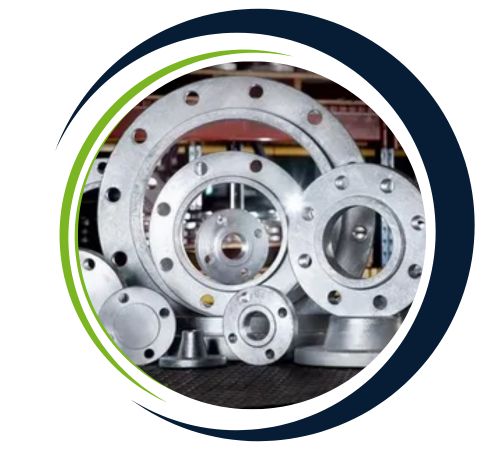

| Inconel Threaded / Screwed Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |

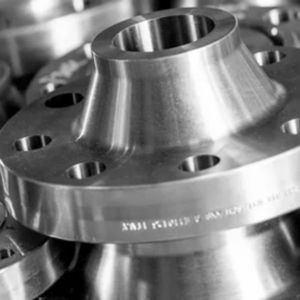

| Inconel Raised Face Threaded Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |

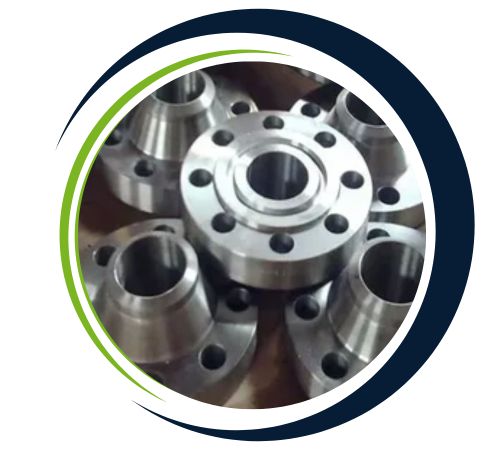

| ASTM B564 Inconel Threaded Flanges Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |

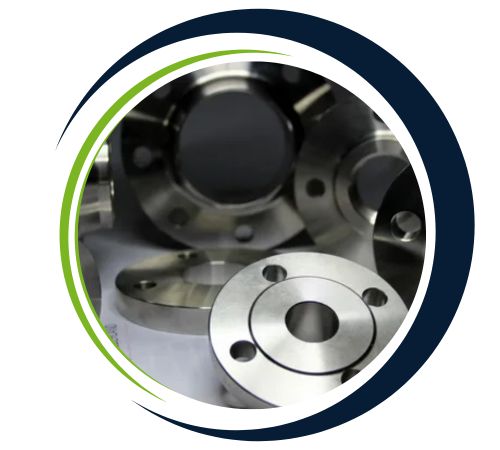

| ASME SB 564 Threaded Flange | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| ASME SB564 Incoloy Alloyl Threaded Flange UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| B564 Threaded Flange EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ASME SB564M Inconel Alloy Threaded Flange Production technique | Forged, Heat treated and machined |

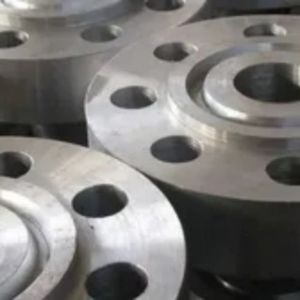

| B564 Threaded Flange Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| ASME B564 Threaded Flange Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| ASTM B564 Inconel Threaded Flange Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Inconel Threaded Flange Origin | Indian / West Europe / Japan / USA / Korean |
| Manufacturer of Incoloy Threaded / Screwed Flange | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. ASTM B564 Threaded Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B564 800 Incoloy Alloy Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| ASME SB564 Inconel Alloy Threaded Flange Uses & application | Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| Inconel Threaded Plate Flanges Export to | Ireland, Singapore, Indonesia, Ukraine, Saudi & Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel Threaded Flanges | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Element | Density | Melting Point | Tensilee Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel Threaded Flanges | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
Inconel threaded flanges find their place in various industries where high corrosion resistance, strength, and dependable threaded connections are crucial. They are commonly used in chemical and petrochemical plants, oil and gas pipelines, power generation facilities, marine environments, and high-temperature processing applications.
Yes, we offer custom sizes for Inconel Threaded Flanges to meet specific project needs. Our team at Rached Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rachedflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
