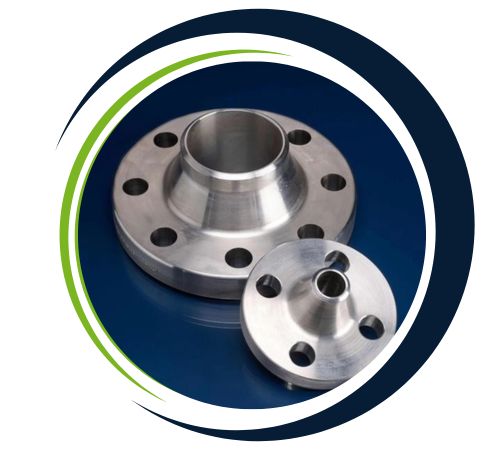

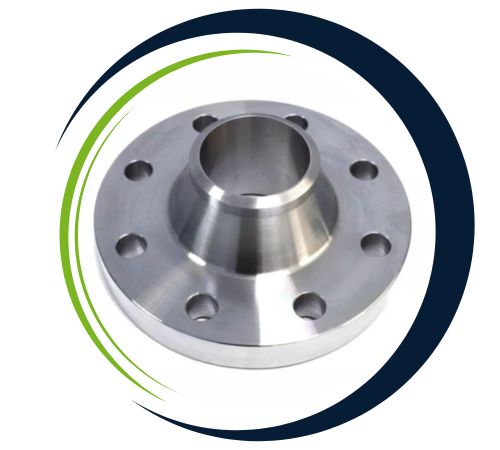

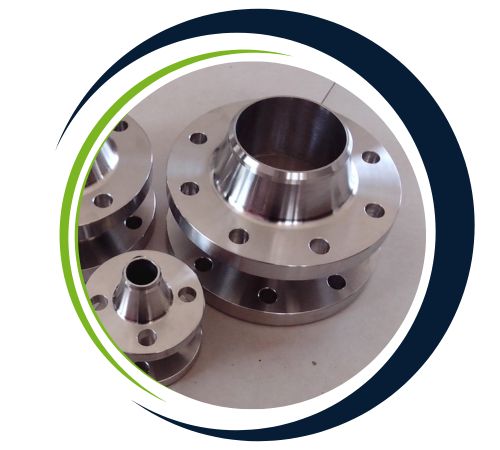

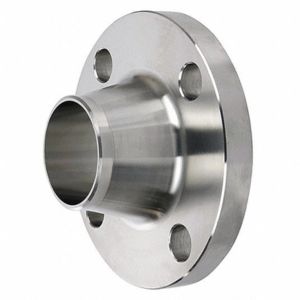

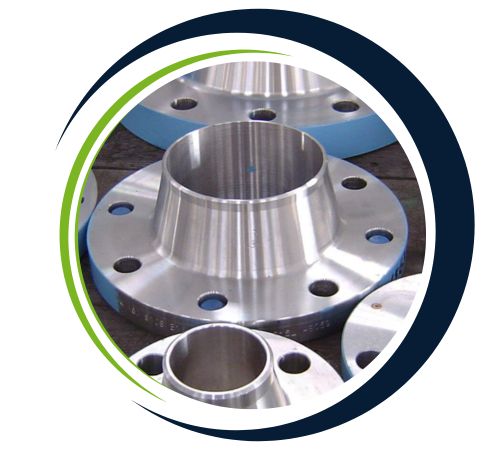

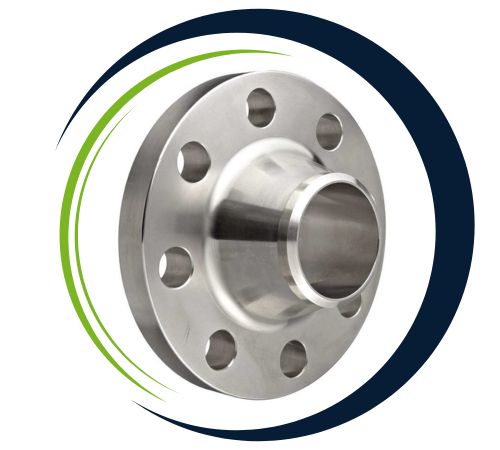

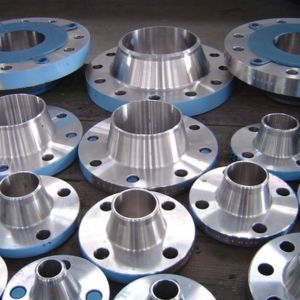

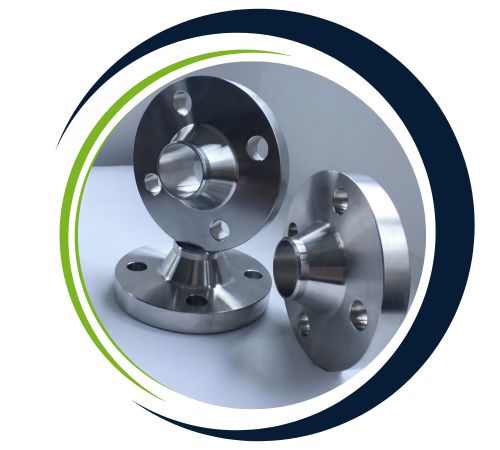

Rached Flanges, based in Tunis, Tunisia, stands out as a top-notch manufacturer and supplier of high-quality Monel weldneck flanges. Known for their precision engineering and commitment to international quality standards, Rached Flanges crafts flanges that offer exceptional strength, corrosion resistance, and durability, even in the toughest industrial settings. With a long tapered hub design, Monel weldneck flanges ensure smooth stress distribution, making them perfect for high-pressure and high-temperature applications. Catering to sectors like oil and gas, chemical processing, petrochemical, marine, and power generation, Rached Flanges merges cutting-edge manufacturing techniques with strict quality control to provide reliable, long-lasting, and high-performance piping solutions.
Monel weldneck flanges are primarily crafted from Monel 400 alloy, which consists of about 63% nickel and 28–34% copper, along with trace amounts of iron, manganese, and carbon. This unique composition grants them outstanding corrosion resistance against acids, alkalis, and seawater, while also ensuring excellent toughness and mechanical strength. In terms of mechanics, these flanges boast a tensile strength ranging from 550–700 MPa, yield strength between 240–380 MPa, and an elongation of 30–50%. The weldneck design promotes uniform load distribution, dimensional stability, and remarkable resistance to stress and deformation, even under high-pressure, high-temperature, and chemically aggressive conditions.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MAlloy S44, ISO70051, JIS400220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 400 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MAlloy SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MAlloy SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MAlloy SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B564 Monel K500 Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS 400220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Monel 400, K500 |

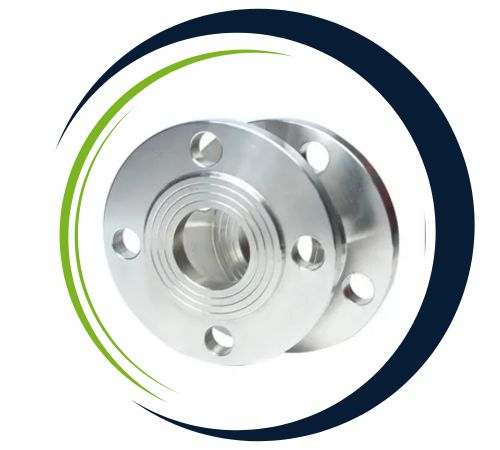

Rached Flanges, a leading supplier in Tunis, Tunisia, offers an extensive selection of Monel Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Monel weldneck flanges find extensive use in industries that demand strong, corrosion-resistant, and dependable piping connections. They are particularly suited for oil and gas pipelines, chemical and petrochemical plants, marine installations, desalination systems, and power generation facilities. The tapered hub design facilitates secure welding, minimizing stress concentration and ensuring a leak-proof connection.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
| Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
Yes, we offer custom sizes for Monel Weldneck Flanges to meet specific project needs. Our team at Rached Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rachedflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
