Rached Flanges, based in Tunis, Tunisia, stands out as a top manufacturer and supplier of high-quality Monel 400 flanges. Known for their precision engineering and unwavering quality standards, Rached Flanges offers products that are built to thrive in demanding industrial settings. Monel 400 flanges are specifically designed to deliver outstanding corrosion resistance, durability, and mechanical strength, making them perfect for tough chemical and marine applications. Catering to industries like oil and gas, chemical processing, marine, and power generation, Rached Flanges merges cutting-edge manufacturing techniques with strict quality control to provide reliable, long-lasting flange solutions that uphold safety, integrity, and performance even in extreme conditions.
Monel 400 flanges are primarily made up of nickel (about 63%) and copper (28–34%), along with trace amounts of iron, manganese, and carbon. This unique blend grants them remarkable corrosion resistance in seawater, acids, and alkalis. In terms of mechanical properties, Monel 400 flanges boast a tensile strength ranging from 550 to 700 MPa, a yield strength of 240 to 380 MPa, and an elongation of 30 to 50%, ensuring high toughness and durability. These flanges maintain their shape and performance even under high temperatures and mechanical stress, making them a dependable choice for critical piping systems in aggressive chemical and marine environments.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 400 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |

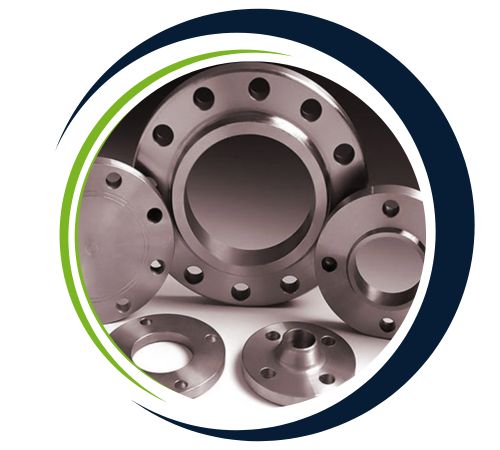

| Production Technique | Forged, Heat treated and machined |

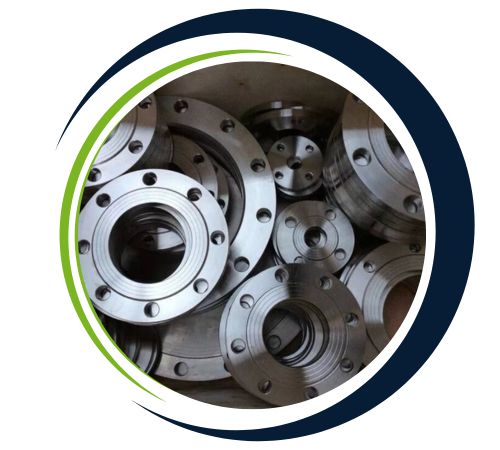

| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |

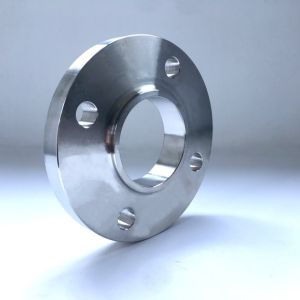

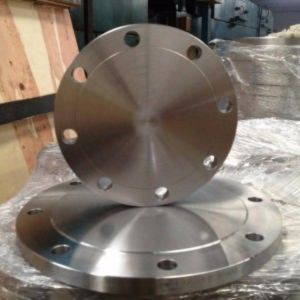

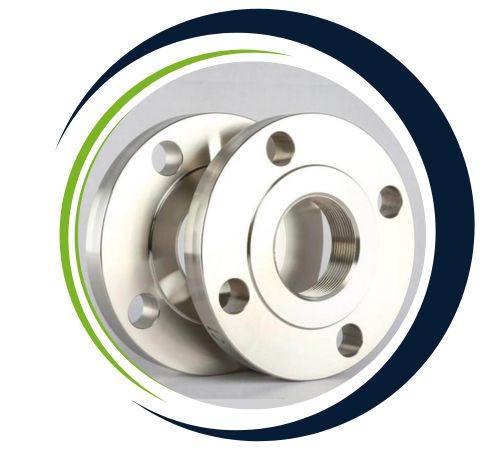

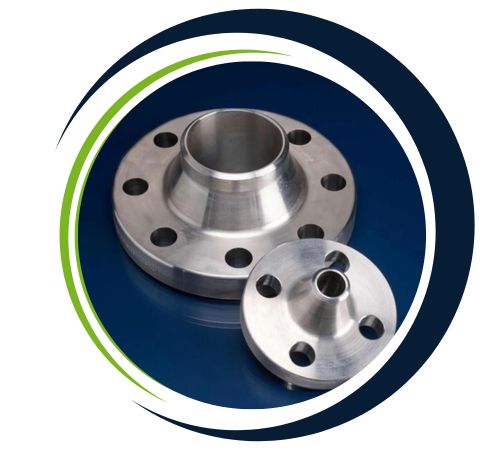

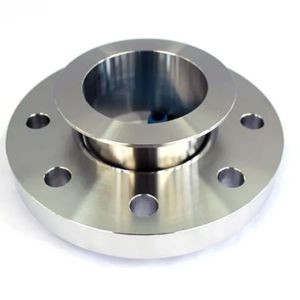

Rached Flanges, a leading supplier in Tunis, Tunisia, offers an extensive selection of Monel 400 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Monel 400 flanges find extensive use in industries where exceptional corrosion resistance and strength are crucial. They are frequently employed in marine settings, chemical and petrochemical facilities, oil and gas pipelines, and desalination systems. These flanges are perfect for connecting equipment like valves, pumps, heat exchangers, and piping that come into contact with seawater, acids, and alkalis. Monel 400 flanges guarantee secure, leak-proof connections in high-pressure situations, ensuring that operations run smoothly and safely in challenging environments.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Yes, we offer custom sizes for Monel 400 Flanges to meet specific project needs. Our team at Rached Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rachedflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
