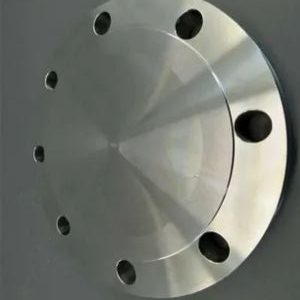

Rached Flanges, located in Tunis, Tunisia, has built a solid reputation as a reliable manufacturer and supplier of high-quality DIN 2527 PN16 Blind Flanges. These flanges are essential for securely closing and isolating pipelines. Known for their precision engineering and advanced manufacturing techniques, the company strictly follows DIN standards to ensure that their products are both durable and dependable. Designed to provide safe, leak-proof terminations in piping systems, Rached Flanges’ DIN 2527 PN16 Blind Flanges perform well even under moderate pressure. With modern facilities and a team of experienced professionals, they deliver cost-effective flange solutions to industrial clients around the globe.
Typically made from carbon steel, stainless steel, or alloy steel, DIN 2527 PN16 Blind Flanges adhere to DIN material specifications like C22.8 or similar grades. These flanges boast impressive tensile and yield strength, along with adequate hardness and reliable toughness, making them suitable for moderate pressure applications. They are engineered to handle PN16 pressure ratings and standard temperature ranges. Thanks to their robust construction, these flanges ensure precise dimensions, long-lasting durability, and consistent performance in pipeline systems, effectively sealing and resisting mechanical stress.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| Rated Diameter | Flange | Screws | Weight (7,85 Kg/dm3) | ||||
|---|---|---|---|---|---|---|---|
| D | b | k | Number | Thread | d2 | Shape B | |
| Kg | |||||||
| 15 | 95 | 14 | 65 | 4 | M 12 | 14 | 0,72 |
| 20 | 105 | 16 | 75 | 1,01 | |||
| 25 | 115 | 16 | 85 | 1,23 | |||
| 32 | 140 | 16 | 100 | M 16 | 18 | 1,8 | |
| 40 | 150 | 16 | 110 | 2,09 | |||
| 50 | 165 | 18 | 125 | 2,88 | |||
| 65 | 185 | 18 | 145 | 3,66 | |||
| 80 | 200 | 20 | 160 | 8 | 4,77 | ||
| 100 | 220 | 20 | 180 | 5,65 | |||
| 125 | 250 | 22 | 210 | 8,42 | |||
| 150 | 285 | 22 | 240 | M 20 | 22 | 10,4 | |
| 200 | 340 | 24 | 295 | 12 | 16,1 | ||
| 250 | 405 | 26 | 355 | M 24 | 26 | 24,9 | |
| 300 | 460 | 28 | 410 | 35,1 | |||
| 350 | 520 | 30 | 470 | 16 | 47,8 | ||
| 400 | 580 | 32 | 525 | M 27 | 30 | 63,5 | |
| 500 | 715 | 36 | 650 | 20 | M 30 | 33 | 102 |
Rached Flanges, a leading supplier in Tunis, Tunisia, offers an extensive selection of DIN 2527 PN16 Blind Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2527 PN16 Blind Flanges are essential for closing or isolating the ends of pipelines, valves, and pressure vessels across a variety of industries. You’ll find them in applications such as water treatment systems, oil and gas pipelines, chemical and petrochemical plants, power generation facilities, and industrial process lines. They also play a crucial role in maintenance, pressure testing, and future expansions of piping systems. By ensuring safe operations and preventing leaks, these flanges make it easy to modify systems as needed.
Yes, we offer custom sizes for DIN 2527 PN16 Blind Flanges to meet specific project needs. Our team at Rached Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rachedflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| Carbon Steel Raised Face DIN 2527 PN16 Blind Flange Stockist | Duplex Steel DIN 2527 PN16 BLRF Flanges Supplier in Tunis |
| DIN 2527 PN16 Blind Pipe Flanges Supplier in Tunis | Duplex Steel DIN 2527 PN16 Blind Flanges |
| DIN 2527 PN16 Blind FF Flange Supplier | Suppliers of DIN 2527 PN16 Blind Flange |
| DIN 2527 PN16 Blind Flange Dimensions | Raised Face DIN 2527 PN16 Blind Flange Manufacturer |
| Nickel Alloy DIN 2527 PN16 Blind Flange | Mild Steel DIN 2527 PN16 Blind Flange |
| DIN 2527 PN16 Blind Flange Manufacturer | Flat Face DIN 2527 PN16 Blind Flange Manufacturer |
| Stainless Steel DIN 2527 PN16 Blind Flange | ASTM B564 Raised Faced DIN 2527 PN16 Blind Flanges |
| 18 inch DIN 2527 PN16 Carbon Steel Blind Flange | DIN 2527 PN16 Blind Flange Dimensions in mm |
| Alloy Steel DIN 2527 PN16 Blind Flanges | Copper Nickel DIN 2527 PN16 Blind Flanges at Best Price |
| 8 Inch DIN 2527 PN16 Blind Pipe Flanges | DIN 2527 PN16 Blind Flanges Stockist |
| DIN 2527 PN16 BLRF Flanges Distributor in Bizerte | Flat Face DIN 2527 PN16 Blind Flanges Exporter |
| Raised Face DIN 2527 PN16 Blind Plate Flanges | Titanium DIN 2527 PN16 Blind Flanges |
| DIN 2527 PN16 Large Diameter Blind Flange | 30 Inch DIN 2527 PN16 Blind Pipe Flange Dimensions |
| 30 inch DIN 2527 PN16 Blind Flange Dealer | Raised Face DIN 2527 PN16 Blind Flanges Manufacturer |
| ASME SA105N Raised Faced DIN 2527 PN16 Blind Flanges | 18 inch Carbon Steel DIN 2527 PN16 Blind Flange |
| German Standard DIN 2527 PN16 Blind Flanges | DIN 2527 PN16 Blind Flange Supplier in Tunisia |
| Carbon Steel DIN 2527 PN16 Blind Flange | DIN 2527 PN16 Blind RF Flange Supplier |
| 4 inch Stainless Steel DIN 2527 PN16 Blind Flange | DIN 2527 PN16 Blind RF Flanges Stockholder |
| DIN 2527 PN16 Blind Flanges Supplier in Sfax | MS DIN 2527 PN16 Blind Flange |
| DIN 2527 PN16 Blind Pipe Flanges Wholesaler | DIN 2527 PN16 BLRF Flanges Supplier |
| DIN 2527 PN16 BLRF Flanges Supplier in Kairouan | Alloy Steel DIN 2527 PN16 Blind Flanges Manufacturer in Tunisia |
| DIN 2527 PN16 BLRF Flange Exporter | DIN 2527 PN16 Blind Flange Pressure Ratings |
| DIN 2527 PN16 BLRF Flange Stockist in Tunisia | Raised Faced DIN 2527 PN16 Slip-On flanges Dealer in Tunisia |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
