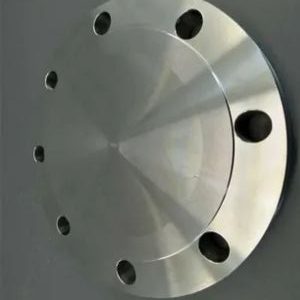

Rached Flanges is a trusted manufacturer and supplier located in Tunis, Tunisia, specializing in high-quality DIN 2527 PN10 Blind Flanges designed for secure pipeline termination and isolation. With a strong commitment to precision manufacturing and adherence to DIN standards, the company provides flanges that prioritize safety, durability, and reliable performance. Engineered to handle specified pressure ratings, Rached Flanges’ DIN 2527 PN10 Blind Flanges ensure effective sealing in piping systems. Supported by state-of-the-art production facilities, skilled professionals, and rigorous quality control, Rached Flanges caters to a variety of industrial sectors around the globe.
Typically, DIN 2527 PN10 Blind Flanges are crafted from carbon steel, stainless steel, or alloy steel, depending on the specific application needs. Common materials include DIN grades like C22.8 or their stainless steel counterparts. These flanges are known for their impressive tensile and yield strength, reliable toughness, and sufficient hardness for PN10 pressure conditions. Mechanically, they are built to manage moderate pressure and temperature ranges, ensuring stable performance, precise dimensions, and a long service life when installed and maintained correctly.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| Rated Diameter | Flange | Screws | Weight (7,85 Kg/dm3) | ||||
|---|---|---|---|---|---|---|---|
| D | b | k | Number | Thread | d2 | Shape B | |
| Kg | |||||||
| 15 | 95 | 14 | 65 | 4 | M 12 | 14 | 0,72 |
| 20 | 105 | 16 | 75 | 1,01 | |||
| 25 | 115 | 16 | 85 | 1,23 | |||
| 32 | 140 | 16 | 100 | M 16 | 18 | 1,8 | |
| 40 | 150 | 16 | 110 | 2,09 | |||
| 50 | 165 | 18 | 125 | 2,88 | |||
| 65 | 185 | 18 | 145 | 3,66 | |||
| 80 | 200 | 20 | 160 | 4,77 | |||
| 100 | 220 | 20 | 180 | 8 | 5,65 | ||
| 125 | 250 | 22 | 210 | 8,42 | |||
| 150 | 285 | 22 | 240 | M 20 | 22 | 10,4 | |
| 200 | 340 | 24 | 295 | 16,5 | |||
| 250 | 395 | 26 | 350 | 12 | 24 | ||
| 300 | 445 | 26 | 400 | 30,9 | |||
| 350 | 505 | 26 | 460 | 16 | 40,6 | ||
| 400 | 565 | 26 | 515 | M 24 | 26 | 49,4 | |
| 500 | 670 | 28 | 620 | 20 | 75 | ||
Rached Flanges, a leading supplier in Tunis, Tunisia, offers an extensive selection of DIN 2527 PN10 Blind Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2527 PN10 Blind Flanges are commonly utilized to seal or isolate the ends of pipelines, valves, and pressure vessels. You’ll find them in various applications, including water treatment plants, oil and gas facilities, chemical processing units, power generation systems, and industrial utilities. They also play a crucial role in maintenance operations, pressure testing, and future pipeline expansions. Thanks to their sturdy design and compliance with DIN standards, these flanges are ideal for low to moderate pressure services, ensuring safe operation, preventing leaks, and allowing for easy modifications across different industries.
Yes, we offer custom sizes for DIN 2527 PN10 Blind Flanges to meet specific project needs. Our team at Rached Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rachedflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| DIN 2527 PN10 BLRF Flange Stockist in Tunisia | Raised Faced DIN 2527 PN10 Slip-On flanges Dealer in Tunisia |
| Nickel Alloy DIN 2527 PN10 Blind Flange | Mild Steel DIN 2527 PN10 Blind Flange |
| Stainless Steel DIN 2527 PN10 Blind Flange | ASTM B564 Raised Faced DIN 2527 PN10 Blind Flanges |
| DIN 2527 PN10 Blind FF Flange Supplier | Suppliers of DIN 2527 PN10 Blind Flange |
| DIN 2527 PN10 Blind Flange Dimensions | Raised Face DIN 2527 PN10 Blind Flange Manufacturer |
| 18 inch DIN 2527 PN10 Carbon Steel Blind Flange | DIN 2527 PN10 Blind Flange Dimensions in mm |
| Alloy Steel DIN 2527 PN10 Blind Flanges | Copper Nickel DIN 2527 PN10 Blind Flanges at Best Price |
| 8 Inch DIN 2527 PN10 Blind Pipe Flanges | DIN 2527 PN10 Blind Flanges Stockist |
| DIN 2527 PN10 BLRF Flange Exporter | DIN 2527 PN10 Blind Flange Pressure Ratings |
| Raised Face DIN 2527 PN10 Blind Plate Flanges | Titanium DIN 2527 PN10 Blind Flanges |
| DIN 2527 PN10 Large Diameter Blind Flange | 30 Inch DIN 2527 PN10 Blind Pipe Flange Dimensions |
| 30 inch DIN 2527 PN10 Blind Flange Dealer | Raised Face DIN 2527 PN10 Blind Flanges Manufacturer |
| 4 inch Stainless Steel DIN 2527 PN10 Blind Flange | DIN 2527 PN10 Blind RF Flanges Stockholder |
| DIN 2527 PN10 Blind Flanges Supplier in Tunis | MS DIN 2527 PN10 Blind Flange |
| ASME SA105N Raised Faced DIN 2527 PN10 Blind Flanges | 18 inch Carbon Steel DIN 2527 PN10 Blind Flange |
| DIN 2527 PN10 Blind Flange Manufacturer | Flat Face DIN 2527 PN10 Blind Flange Manufacturer |
| DIN 2527 PN10 BLRF Flanges Distributor in Bizerte | Flat Face DIN 2527 PN10 Blind Flanges Exporter |
| German Standard DIN 2527 PN10 Blind Flanges | DIN 2527 PN10 Blind Flange Supplier in Tunisia |
| Carbon Steel DIN 2527 PN10 Blind Flange | DIN 2527 PN10 Blind RF Flange Supplier |
| Carbon Steel Raised Face DIN 2527 PN10 Blind Flange Stockist | Duplex Steel DIN 2527 PN10 BLRF Flanges Supplier in Tunis |
| DIN 2527 PN10 Blind Pipe Flanges Supplier in Sfax | Duplex Steel DIN 2527 PN10 Blind Flanges |
| DIN 2527 PN10 BLRF Flanges Supplier in Kairouan | Alloy Steel DIN 2527 PN10 Blind Flanges Manufacturer in Tunisia |
| DIN 2527 PN10 Blind Pipe Flanges Wholesaler | DIN 2527 PN10 BLRF Flanges Supplier |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
