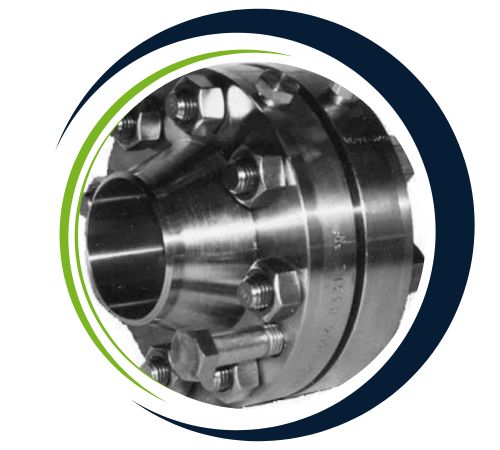

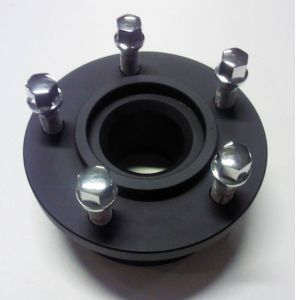

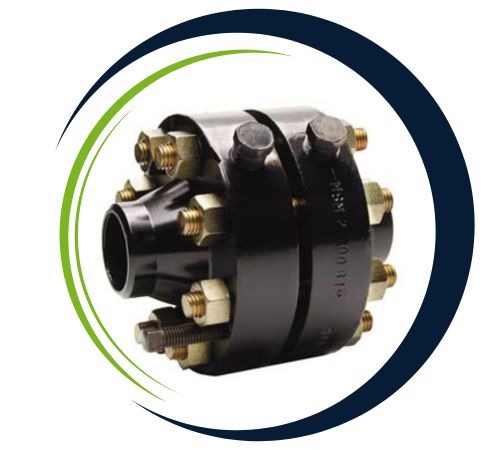

Rached Flanges stands out as a top manufacturer and supplier of Carbon Steel Orifice Flanges right in Tunis, Tunisia. We take pride in delivering high-quality products that align with international standards. Renowned for our precision engineering, durability, and dependable performance, we ensure that every orifice flange is crafted using cutting-edge forging and machining techniques. Our Carbon Steel Orifice Flanges are specifically designed to provide accurate flow measurement and pressure monitoring in piping systems, all while maintaining their structural integrity even in tough conditions. With a strong focus on quality control, prompt delivery, and outstanding customer support, Rached Flanges has earned a reputation as a reliable partner for industries in need of durable flange solutions.
Made from top-notch carbon steel, our Carbon Steel Orifice Flanges offer remarkable strength, toughness, and resistance to wear and deformation. These flanges boast impressive mechanical properties, including high tensile and yield strength, good hardness, and adequate ductility, ensuring they perform reliably under varying pressure and temperature conditions. Tailored to fit orifice meters, they guarantee precise alignment and stability for accurate flow measurement. Their composition not only ensures durability and corrosion resistance in typical environments but also makes them compatible with a variety of piping systems, making them perfect for long-term industrial use.
Rached Flanges, a premier supplier in Tunis, Tunisia, specializes in high-quality Carbon Steel Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
Carbon Steel Orifice Flanges Specifications: ASTM A105/ ASME SA105

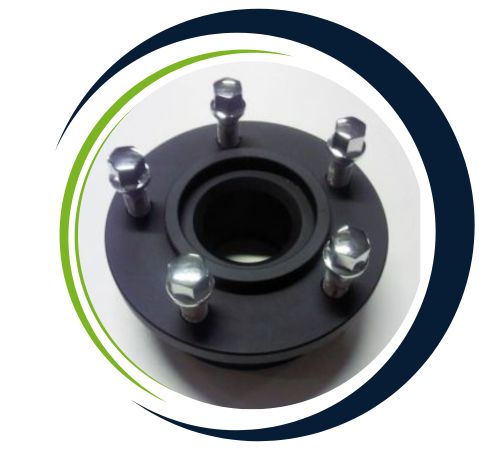

Carbon Steel Orifice Flanges Dimensions: ANSI/ASME B16.36, Series A & B, BS4504, BS 10, EN-1092, DIN, etc.
Carbon Steel Orifice Flanges Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Carbon Steel Orifice Flanges : Size :1/2″ (15 NB) to 48″ (1200NB)
Carbon Steel Orifice Flanges Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

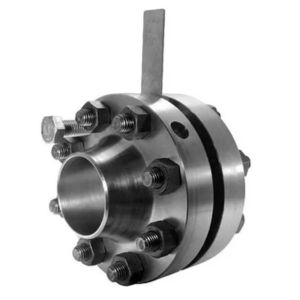

Carbon Steel Orifice Flange Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
| Size in Inch | Size in mm | Outer Dia. | Flange Thick. | Hub OD | Weld Neck OD | Welding Neck Length | RF Dia. | RF Height | PCD | Orifice Hole dia | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | F | G | H | I | ||||||||
| 1 | 25 | 125 | 36.6 | 54 | 33.4 | 81 | 50.8 | 2 | 88.9 | 6.4 | 4 | 5/8 | 125 | 3/4 | M16 | 4.5 |
| 1 1/2 | 40 | 155 | 36.6 | 70 | 48.3 | 84 | 73 | 2 | 114.3 | 6.4 | 4 | 3/4 | 135 | 7/8 | M20 | 6.5 |
| 2 | 50 | 165 | 36.6 | 84 | 60.3 | 84 | 92.1 | 2 | 127 | 6.4 | 8 | 5/8 | 125 | 3/4 | M16 | 7 |
| 2 1/2 | 65 | 190 | 36.6 | 100 | 73 | 87 | 104.8 | 2 | 149.2 | 6.4 | 8 | 3/4 | 135 | 7/8 | M20 | 7.5 |
| 3 | 80 | 210 | 36.6 | 117 | 88.9 | 87 | 127 | 2 | 168.3 | 9.5 | 8 | 3/4 | 135 | 7/8 | M20 | 9.4 |
| 4 | 100 | 255 | 36.6 | 146 | 114.3 | 90 | 157.2 | 2 | 200 | 12.7 | 8 | 3/4 | 135 | 7/8 | M20 | 13.2 |
| 6 | 150 | 320 | 36.6 | 206 | 168.3 | 98 | 215.9 | 2 | 269.9 | 12.7 | 12 | 3/4 | 135 | 7/8 | M20 | 14.6 |
| 8 | 200 | 380 | 39.7 | 260 | 219.1 | 110 | 269.9 | 2 | 330.2 | 12.7 | 12 | 7/8 | 145 | 1 | M24 | 30 |
| 10 | 250 | 445 | 46.1 | 321 | 273 | 116 | 323.8 | 2 | 387.3 | 12.7 | 16 | 1 | 165 | 1 1/8 | M27 | 41 |
| 12 | 300 | 520 | 49.3 | 375 | 323.8 | 129 | 381 | 2 | 450.8 | 12.7 | 16 | 1 1/8 | 180 | 1 1/4 | M30 | 62 |
| 14 | 350 | 585 | 52.4 | 425 | 355.6 | 141 | 412.8 | 2 | 514.4 | 12.7 | 20 | 1 1/8 | 185 | 1 1/4 | M30 | 84 |
| 16 | 400 | 650 | 55.6 | 483 | 406.4 | 144 | 469.9 | 2 | 571.5 | 12.7 | 20 | 1 1/4 | 195 | 1 3/8 | M33 | 111 |
| 18 | 450 | 710 | 58.8 | 533 | 457 | 157 | 533.4 | 2 | 628.6 | 12.7 | 24 | 1 1/4 | 205 | 1 3/8 | M33 | 138 |
| 20 | 500 | 775 | 62 | 587 | 508 | 160 | 584.2 | 2 | 685.8 | 12.7 | 24 | 1 1/4 | 215 | 1 3/8 | M33 | 171 |
| 24 | 600 | 915 | 68.3 | 702 | 610 | 167 | 692.2 | 2 | 812.8 | 12.7 | 24 | 1 1/2 | 240 | 1 5/8 | M39 | 247 |
You’ll find Carbon Steel Orifice Flanges widely utilized in sectors that demand precise flow measurement and monitoring, such as oil and gas, petrochemical, chemical processing, water treatment, and power generation. They are installed in pipelines to securely hold orifice meters, enabling accurate measurement of fluid flow, pressure drop, and energy consumption. These flanges are particularly suited for high-pressure and moderate-temperature applications, ensuring safety, reliability, and efficient system performance. With their robust construction, resistance to corrosion, and ability to endure mechanical stress, they are truly essential components in any industrial setup.
Yes, we offer custom sizes for Carbon Steel Orifice Flanges to meet specific project needs. Our team at Rached Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rachedflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
