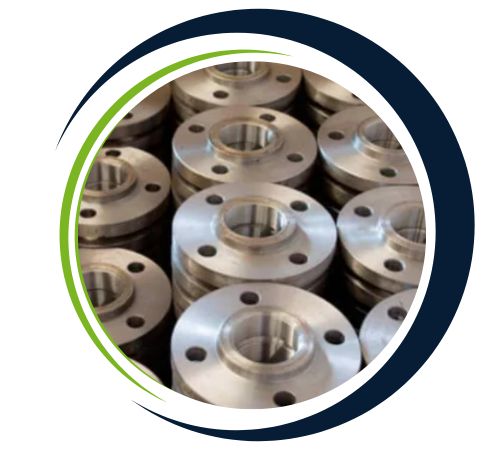

Rached Flanges, based in Tunis, Tunisia, has earned a solid reputation as a reliable manufacturer and supplier of ANSI B16.5 Class 400 Flanges. With a focus on precision engineering and a commitment to international quality standards, this company delivers flanges that are built to last, ensuring safety and dependable performance in various industrial settings. They cater to industries like oil and gas, petrochemicals, power generation, and water treatment, blending cutting-edge manufacturing techniques with strict quality control. Each Class 400 flange is crafted to withstand moderate-to-high pressures and temperatures, providing secure, leak-proof connections that make Rached Flanges a go-to partner for industrial piping solutions around the globe.
These ANSI B16.5 Class 400 Flanges are made from top-notch carbon steel, alloy steel, and stainless steel, offering impressive strength, corrosion resistance, and durability. Their chemical makeup aligns with ASTM standards, guaranteeing toughness and reliable performance even under challenging pressures. On the mechanical side, these flanges boast good tensile and yield strength, impact resistance, and the capability to operate effectively in demanding environments. With precise dimensions and consistent metallurgical properties, ANSI B16.5 Class 400 Flanges ensure secure, leak-proof connections, making them ideal for various industrial piping systems where safety and adherence to international standards are crucial.
Rached Flanges, a leading supplier in Tunis, Tunisia, offers an extensive selection of ANSI B16.5 Class 400 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges. |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Class 400 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Specialized Manufacturer of |
|
| Standard | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
|
| CLASS | Nominal Pipe Size | Slip On | Threaded | Socket Weld | Lap Joint | Blind | Weld Neck |
| 400 lb | ½ | 1 | 1 | 2 | 1 | 2 | 2 |
| ¾ | 2 | 2 | 2 | 2 | 2 | 2 | |
| 1 | 2 | 2 | 2 | 2 | 2 | 3 | |
| 1¼ | 3 | 3 | 3 | 3 | 3 | 3 | |
| 1½ | 3 | 3 | 3 | 3 | 4 | 4 | |
| 2 | 5 | 5 | 5 | 5 | 5 | 6 | |
| 2½ | 8 | 8 | 8 | 8 | 7 | 10 | |
| 3 | 9 | 9 | 9 | 9 | 9 | 11.5 | |
| 3½ | 11 | 12 | 11 | 11 | 13 | 12 | |
| 4 | 13 | 13 | 13 | 13 | 17 | 16.5 | |
| 5 | 15 | 15 | 15 | 15 | 20 | 21 | |
| 6 | 19 | 19 | 19 | 19 | 27 | 26 | |
| 8 | 30 | 30 | 30 | 30 | 47 | 42 | |
| 10 | 43 | 43 | 43 | 43 | 70 | 54 | |
| 12 | 64 | 64 | 64 | 64 | 123 | 88 | |
| 14 | 90 | 90 | 90 | 105 | 140 | 114 | |
| 16 | 106 | 98 | 98 | 140 | 180 | 140 | |
| 18 | 130 | 130 | 130 | 160 | 220 | 165 | |
| 20 | 165 | 165 | 165 | 195 | 285 | 197 | |
| 22 | 185 | 185 | 185 | 245 | 355 | 225 | |
| 24 | 220 | 220 | 220 | 275 | 430 | 268 |
You’ll find ANSI B16.5 Class 400 Flanges widely utilized in industries that require moderate-to-high pressure piping systems. They’re commonly found in oil and gas pipelines, petrochemical facilities, power generation plants, and water treatment systems. These flanges create strong and reliable connections for pipes, valves, pumps, and other equipment, maintaining system integrity even under tough operating conditions. Their sturdy design accommodates thermal expansion, vibration, and moderate loads, ensuring they perform well over the long haul. Engineers and designers often favor Class 400 flanges for their reliability and performance.
Yes, we offer custom sizes for ANSI B16.5 Class 400 Flanges to meet specific project needs. Our team at Rached Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rachedflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
